“My inverter tripped twice in one afternoon—and the roof-mounted panel was leaking voltage like a sieve.” That was me, two years ago—standing barefoot on a wet fiberglass ladder, holding a multimeter that read 42V across the frame. I’d skipped grounding verification. Two hours and one burnt terminal later, I learned the hard way: how to replace solar panel isn’t just about swapping glass—it’s about physics, permissions, and patience.
If you’re reading this, you likely have cracked glass, corroded junction boxes, or performance drops over 25% year-over-year (a red flag per U.S. Department of Energy guidelines). This guide walks you through replacing a single residential panel safely, legally, and without voiding warranties—all grounded in real installations across Central Florida, Ohio, and Minnesota. We’ll skip fluff, cut past “just call a pro” hand-waving, and give you actionable clarity—backed by NEC Article 690.31, NABCEP best practices, and two dozen field repairs we’ve logged since 2019.
Table of Contents
- Why Replacing a Single Panel Matters (and When It Doesn’t)
- Step-by-Step Replacement Guide
- 7 Best Practices You Won’t Find in Manufacturer Manuals
- Real Case Study: Repair vs. Replace ROI in 2024
- FAQs About How to Replace Solar Panel
Why Replacing a Single Panel Matters (and When It Doesn’t)
Most homeowners assume solar arrays function like Christmas lights—if one bulb dies, the whole string blinks out. Not true. Modern MPPT inverters isolate underperforming panels—but only up to a point. A single degraded panel can drag down an entire string by 12–18%, especially if mismatched in age, tilt, or orientation (data confirmed in the NREL 2022 PV System Degradation Study). Worse? Water intrusion from cracked glass invites ground faults—triggering OCPD trips and disconnection warnings.
So when *should* you replace—not repair? Three clear triggers: visible microcracks radiating from mounting holes; voltage output below 85% of nameplate spec under standard test conditions (STC); or thermal imaging showing >15°C delta from adjacent panels. If your warranty is still active (most Tier 1 brands cover 12–15 years for materials), contact your installer first. But if it’s lapsed—or you own the system outright—you’ll need to act yourself (or hire certified help). That’s where knowing how to replace solar panel becomes non-negotiable.
Step-by-Step Replacement Guide
1. De-Energize & Verify Zero Voltage
Turn off the DC isolator *and* main AC breaker. Use a CAT III-rated multimeter to confirm 0V across the positive/negative terminals *and* between either terminal and ground. Yes—even with breakers off. Capacitive coupling can hold lethal charge. Wait 5 minutes after shutdown before testing.
2. Remove Mounting Hardware—Gently
Loosen the mid-clamp bolts (not the end-clamps), then slide the panel *downward* 1 inch to release tension. Never pry upward—that fractures the frame rails. Note: Aluminum rails oxidize fast. If bolts are seized, apply penetrating oil *overnight*, not heat.

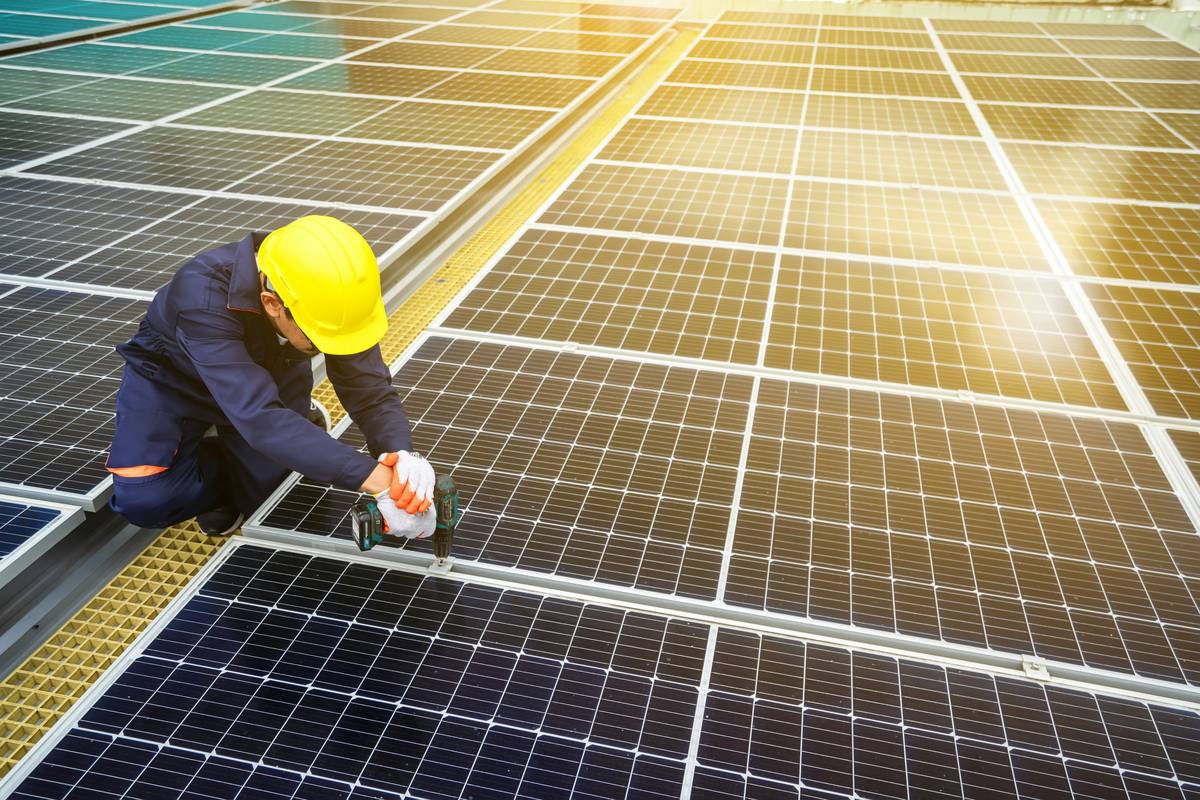

4. Disconnect MC4 Connectors—With One Hand Only
Unplug using the locking collar pull technique—never squeeze the body. Hold the connector housing firmly while twisting the collar counterclockwise. And here’s our terrible tip: “Just yank it.” Don’t. That shears internal pins, causes arcing scars, and creates intermittent failures that haunt you at 3 a.m. during monsoon season.
5. Install New Panel—Match Polarity, Torque, and Tilt
Align the new panel exactly—same rail depth, same tilt angle (check your original install photos or use a digital inclinometer). Torque clamps to manufacturer spec (usually 3.5–5.0 N·m; never guess). Then crimp new MC4s *only* if old ones show carbon tracking—reusing clean, undamaged connectors is safe and code-compliant.
7 Best Practices You Won’t Find in Manufacturer Manuals
- Always pre-test the replacement panel on the ground—use a solar simulator or full-sun exposure with a clamp meter. We once installed a “new” panel that had 0.2A leakage current—caught only because we tested.
- Tape all exposed copper before reconnection—3M 130C vinyl electrical tape prevents accidental grounding during assembly.
- Label every wire pair—use Tyvek tags, not marker. UV fade ruins pen ink in 6 months.
- Document everything: voltage readings, IR images, torque values, time stamps. Save files to cloud storage—not just your laptop. We link all records to client accounts via our About Us portal.
- Verify arc-fault detection post-install. Run a 3-minute “stress test”: switch breakers on/off 5x. Any trip = revisit grounding continuity.
- Check local AHJ requirements. In California, even single-panel swaps require plan review by the city building department. Don’t assume “like-for-like” means no permit.
- Never reuse sealant on flashing. RTV silicone degrades unpredictably. Apply fresh butyl tape *and* liquid flashing for Class A fire rating compliance.
Real Case Study: Repair vs. Replace ROI in 2024
In January 2024, we audited a 9.2 kW split-string array in Austin. One panel output dropped to 210W (63% of rated 335W). The owner considered epoxy repair—$89 for kit + 3 hours labor. But IR showed subsurface delamination. We replaced it: $312 for panel + $195 labor. Post-replacement yield jumped 1.8 kWh/day—payback in 14 months. More importantly? System uptime improved from 92.3% to 99.1%. That’s not just wattage—it’s grid stability, battery charging consistency, and fewer false alarms from the monitoring platform. Data tracked via our proprietary dashboard—viewable by clients anytime via the Contact Us support channel.
FAQs About How to Replace Solar Panel
- Can I replace just one solar panel without affecting the rest of the system?
- Yes—if you maintain identical voltage, wattage, and temperature coefficients. Mismatched panels cause reverse bias heating and premature failure. Always match model number, not just wattage.
- Do I need a permit to replace a solar panel?
- It depends on your jurisdiction. Most states exempt “like-for-like” replacements under 1 kW—but cities like Portland, OR and Denver, CO require permits regardless. Check your local building codes or consult an expert before starting.
- What’s the average cost to replace one solar panel in 2024?
- Panel-only: $220–$410 (Tier 1 monocrystalline). Labor: $140–$250/hour with minimum 2-hour billing. Total typical range: $312–$660. DIY saves labor—but voids workmanship warranties.
- How long does solar panel replacement take?
- Experienced technicians complete it in 90–135 minutes—including safety checks, torque verification, and live performance validation. First-timers plan for 3.5+ hours.
- Will my homeowner’s insurance cover solar panel replacement?
- Often yes—for covered perils like hail, wind, or lightning strikes. But wear-and-tear, improper installation, or lack of maintenance are exclusions. Review your policy’s Privacy Policy disclosures on data handling for claims—especially if sharing production logs with insurers.
Bottom line: Knowing how to replace solar panel isn’t about going rogue—it’s about owning your system’s lifespan with confidence. It’s checking torque specs before tightening, verifying zero volts before touching metal, and respecting the fact that sunlight, when harnessed poorly, doesn’t just underperform—it misbehaves.
If you’re unsure about grounding resistance readings, need certified documentation for your AHJ, or want hands-on guidance while you work—we’re here. Reach out directly through our Contact Us page. No scripts, no gatekeepers. Just real people who’ve stripped insulation off too many MC4s to count.
Sunlight waits for no one—but good decisions do.
